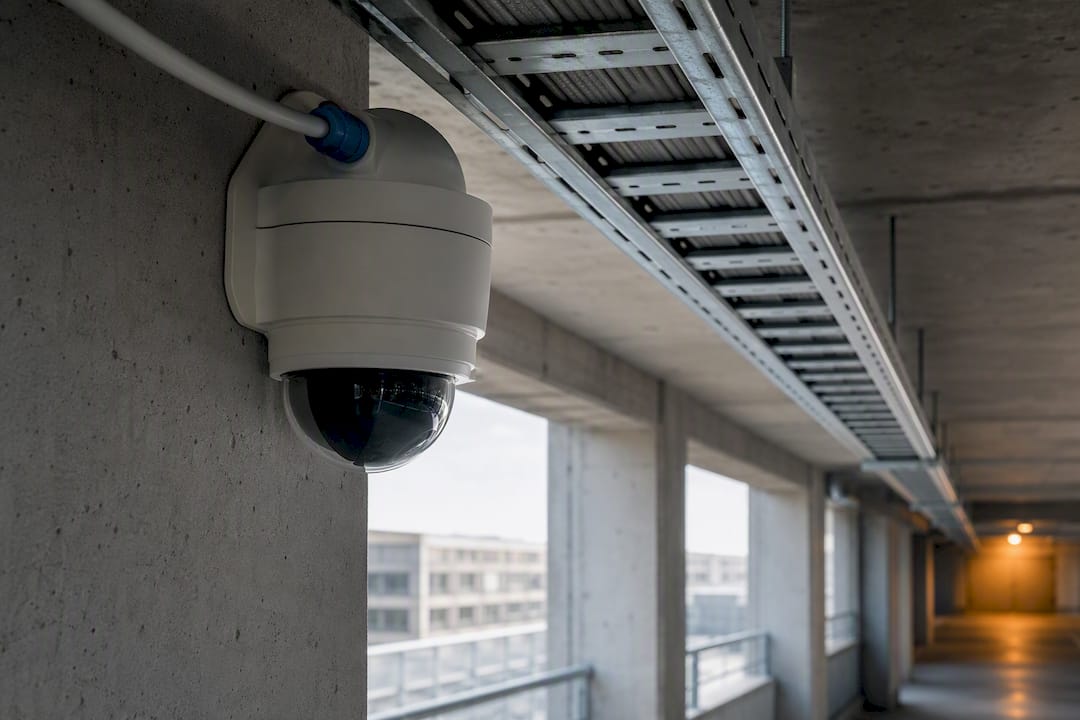

100 Meters Isn’t Safe for PoE Camera Distance Planning

The Ethernet channel limit for PoE cameras is generally considered up to 100 meters, but power loss, not data signal, is usually what fails first on long runs. A camera drawing 25 watts on marginal 24 AWG cable can brown out well before the 100 meter mark. Before committing to any long run, calculate the voltage drop, test with the camera’s worst-case power draw, and keep fiber extension or PoE extenders in your back pocket for anything approaching that ceiling.

TL;DR:

• The maximum Ethernet channel length for PoE cameras is 100 meters, but power may fail well before that if cable gauge, wattage, or conditions cause significant voltage drop.
• Higher PoE standards reduce power loss over distance, with Type 4 (up to 90 watts) being suitable only for shorter, high-power runs, especially when using Cat5e or Cat6 cables.
• Cable gauge and quality significantly impact power delivery, with Cat6A and lower AWG (like 23) wire offering better resistance and more reliable long-distance PoE.
• Environmental factors such as bundling, heat, and poor terminations can raise cable resistance and lead to power failures even within the 100-meter limit.
• For longer distances or high-power cameras, fiber optic solutions or local power sources provide more dependable alternatives than standard copper PoE extensions.

Understanding PoE Camera Distance: The 100-Meter Baseline

A “channel” in structured cabling means the full run from switch port to camera, including patch cords, the horizontal cable, and every connection point in between. The 100-meter maximum comes from IEEE Ethernet standards for balanced twisted-pair copper and applies to data transmission, not power delivery. That distinction trips up a lot of installers who assume hitting the data spec means the camera will run fine.

Data and power face different physics on the same cable. Ethernet signaling tolerates attenuation up to a defined threshold at 100 meters and still decodes cleanly. Power delivery works differently: every meter of copper adds resistance, and that resistance burns wattage as heat rather than delivering it to the camera. A camera can negotiate a perfect gigabit link at 95 meters and still fail to power on if the voltage sagging across that distance drops below what the device needs to boot its heater or IR array.

That’s why installers plan for two separate limits, not one:

• The data-channel limit: fixed at 100 meters (328 feet) for standard Ethernet, regardless of power class.
• The electrical limit: variable, driven by camera wattage, cable gauge, connector quality, and ambient temperature.
• The practical limit: whichever of the two fails first, which on high-power or long runs is almost always the electrical one.

Camera distance planning starts with the channel spec, then gets corrected downward by an actual voltage-drop calculation for the specific device and cable in use.

PoE Standards and Power Classes That Matter to Camera Installs

Not all PoE is the same PoE, and the standard your switch or injector uses directly caps how much power survives a long cable run. The IEEE has defined four main PoE types, each with its own delivered-power ceiling at the source:

• 802.3af (Type 1): up to 15.4 watts at the PSE, suitable for basic fixed cameras.
• 802.3at (Type 2): up to about 30 watts at the PSE, common for most modern fixed and mini-dome cameras.
• 802.3bt Type 3: up to 60 watts at the PSE, used for PTZ cameras and units with heating.
• 802.3bt Type 4: up to 90 watts at the PSE, intended for heavy PTZ units and multi-sensor cameras.

Delivered power at the camera end is always lower than the PSE figure because of cable loss, and that gap widens with distance. The 802.3bt standard’s move to 4-pair powering cuts resistive loss roughly in half compared to older 2-pair Type 1/Type 2 designs, since the current splits across twice as many conductors. LLDP negotiation between switch and camera also matters here: it lets the PSE confirm exactly how much power the device needs rather than defaulting to a class maximum, which affects how the system responds when voltage starts to sag on a long run.

How Cable Category and Wire Gauge Change Your Real-World Reach

Cable choice is where most installers either buy themselves margin or set up a callback. The core variable is conductor gauge, measured in AWG (American Wire Gauge), and it determines how much resistance the current fights against over distance.

Cat5e commonly uses 24 AWG conductors, while Cat6 and Cat6A typically step up to 23 AWG, a seemingly small jump that meaningfully lowers loop resistance. Lower resistance means less power converted to heat in the cable and more delivered to the camera at the far end. On a 90 meter run feeding a 60 watt PTZ, that difference can be the gap between a stable unit and one that reboots every time its heater kicks on.

Field data backs up how much variance exists between average and worst-case runs. One documented system simulation found an average cable length of 38.7 meters with total system cable loss of just 2.68 percent, but the longest single cable in that same system lost 9 percent of its power to resistance. Averages hide the runs that actually cause problems.

Quick guidance by camera class and distance:

• Type 1/Type 2 fixed cameras under medium distances: Cat5e is often adequate, though Cat6 provides extra margin.
• Type 2/Type 3 cameras at longer typical distances: Cat6 is advisable; Cat5e is less recommended.
• Type 4 PTZ or heated cameras, or runs near the maximum channel length: Cat6A is recommended, especially where cables are bundled.

For a broader look at how cable construction interacts with camera specs across a full CCTV project, our guide to choosing CCTV cable types covers the selection logic in more depth.

What Actually Shortens a PoE Run in the Field

Lab specs assume ideal conditions. Job sites rarely offer them. Several environmental and workmanship factors routinely eat into the electrical margin a cable is supposed to have, and they stack on top of each other rather than acting alone.

Temperature is the biggest hidden variable. Copper resistance rises with heat, and cable bundled tightly in conduit or run through an unconditioned mechanical room traps its own heat from adjacent conductors carrying current. A run rated fine at 68°F in a lab can lose meaningful headroom in a rooftop conduit hitting 100°F in July.

• Bundling and conduit fill: dense bundles trap heat and raise effective resistance across every cable in the group, not just the outer ones.
• Connector and termination quality: a poorly seated RJ45 plug or a rushed punch-down adds contact resistance that a cable tester will often flag but a visual inspection will miss.
• Peak load events: IR illuminators kicking on at dusk, or a PTZ motor drawing a startup surge while panning, can spike the current draw well above the camera’s steady-state rating.
• Patch cord quality: cheap stranded-copper patch cords at each end of the channel add more resistance per foot than solid-copper horizontal cable.

Pro Tip: Test cameras with their heater and IR array both active, not just powered on and idle. A unit that boots fine in a 70°F server room can brown out the moment its heater cycles on during a cold snap, and that failure mode almost never shows up during a same-day commissioning test.

Calculating PoE Voltage Drop: Two Worked Examples

Running the numbers before you pull cable beats troubleshooting a brownout after the ceiling tiles are back in place. The calculation itself is straightforward:

1. Determine the PD’s (powered device’s) real wattage draw, including heater and IR peak load, not just its idle spec.
2. Choose a PSE voltage assumption, typically 48 to 56 volts depending on the switch or injector.
3. Calculate current: current equals power divided by voltage (I = P / V).
4. Calculate loop resistance for the cable run, using the manufacturer’s ohms-per-100-meter spec for the gauge in use, doubled for the round trip.
5. Calculate power lost to the cable: loss equals current squared times loop resistance (P_loss = I² × R).
6. Subtract that loss from the PSE’s delivered wattage and confirm the remaining voltage at the camera stays above its minimum operating threshold.

Industry guidance also recommends modeling the camera as a constant-power load rather than a fixed resistance, since as voltage sags, current rises to compensate, which accelerates further voltage drop on long or high-power runs. That feedback loop is exactly why marginal runs sometimes work for weeks and then fail on the first cold morning.

Worked Example A: A basic fixed camera on 80 meters of Cat6. A Type 2 fixed camera drawing 12 watts, fed from a 30 watt PSE over 80 meters of Cat6 (23 AWG), loses only a small fraction of a watt to resistance. Delivered voltage stays comfortably above the camera’s minimum, with wide margin to spare.

Worked Example B: A heated PTZ (55 watts) on 45 meters of Cat6 with connector loss. A Type 3/4 PTZ drawing 55 watts with its heater active, on a 45 meter Cat6 run plus two patch cords and a marginal field termination, faces a meaningfully higher current draw and added contact resistance. That combination can push delivered voltage close to the PD’s minimum threshold, leaving little margin for a hot summer day or a startup surge.

When a calculation like Example B comes back with thin margin, that’s the signal to raise a design change: step up to a higher PSE class, switch that run to fiber with local power, or split the heater onto a separate feed.

Proven Ways to Extend PoE Camera Runs Past 100 Meters

When a camera location sits beyond a practical PoE run, four extension approaches cover nearly every real-world scenario, each with its own trade-off between cost, complexity, and reliability.

• PoE extenders and repeaters regenerate both signal and power at a midpoint, typically adding another 100 meters per hop. They’re the cheapest fix but stack failure points, and cascading more than one or two hops introduces enough latency and power loss that vendors rarely recommend it for high-power cameras.
• Fiber with media converters or SFPs eliminates the electrical constraint entirely by running data over glass and injecting power locally at the camera end. This is the most reliable enterprise approach for long or high-power runs, since fiber has no resistive power loss to calculate at all.
• Midspan injectors add power to a link after the data switch, useful when the existing switch doesn’t support PoE or when a specific run needs a higher power budget than the rest of the network.
• Local AC power at the camera with a local injector removes the long-run power question altogether, feeding only data over the extended cable while a nearby outlet or panel handles wattage.

Vendor distance claims deserve real skepticism. Testing shows some extended-channel products support gigabit speeds out to roughly 150 meters at moderate lab temperatures, but heat, connector variability, and real camera power draw routinely erode that margin outside a controlled lab. Never take a spec sheet’s “extended distance” number at face value. Test the actual device, on the actual cable run, under the actual worst-case load before signing off on a design.

Installation Checklist to Avoid Long-Run PoE Failures

A little discipline before and during the pull prevents most of the callbacks that trace back to marginal power delivery.

1. Confirm the PD’s peak draw, not its published idle wattage, and size the PSE budget against that peak figure with margin to spare.
2. Map every run length before ordering cable, and flag anything over 70 meters for a voltage-drop calculation rather than assuming it will be fine.
3. Certify every cable run with a proper tester after installation, checking length, wire map, and attenuation, not just continuity.
4. Load-test each camera with its heater and IR array active during commissioning, ideally on the hottest or coldest day available.
5. Label every cable at both ends with run ID, origin, and destination to cut troubleshooting time in half on future service calls.
6. Add surge protection and proper grounding on any outdoor run or rooftop pull, since lightning and static discharge are common failure causes on exterior camera drops.

Pro Tip: Document each run’s calculated voltage drop alongside its as-built length in your closeout package. When a camera starts acting up two years later, that number tells the next technician in five minutes what would otherwise take an afternoon of testing to diagnose.

What the Field Actually Teaches About Long PoE Runs

Most PoE distance failures trace back to the same three culprits: undersized AWG on a run that should have been Cat6A, a rushed termination that passed a continuity check but not a real certification test, and a PSE budget sized for idle wattage instead of peak heater and IR draw. None of those show up until the camera has been live for a few weeks and the weather turns.

Fiber becomes the right call earlier than most installers assume, particularly for PTZ units or any run where the calculated voltage margin comes back thin. Dual-feed designs, where PoE handles electronics and local power handles the heater, are worth the extra conduit run on any high-power unit past 60 meters. A proper site survey validates run lengths against actual switch capacity, checks for conduit heat sources along the path, and catches AWG mismatches before they become a service ticket. That’s the difference between a design that works in the estimate and one that works in July.

— Ken

Getting a Long-Run PoE Design Right the First Time

Guessing at cable gauge or hoping a camera clears the voltage-drop threshold is how service calls happen. Voltage-drop budgets, real load testing of cable runs, and certification before cameras go live help reduce callbacks and prevent surprises when heaters cycle on in cold weather.

For runs that push past what copper can reliably deliver, our team designs and installs fiber optic infrastructure as a permanent fix rather than a workaround, alongside structured Cat6 and Cat6A cabling for the rest of the system and full CCTV and access control cabling for commercial and secure facilities across New York City. A site survey covers exact run lengths, a voltage-drop budget for each camera’s power class, and cable testing and certification before installation begins. Request a site survey through our structured cabling services page to get a real distance and power plan before you commit to a design.

Standards and Tools Worth Bookmarking

For verification beyond this article, the Ethernet Alliance’s PoE cable loss whitepaper and the Starlight Tools PoE voltage-drop calculator cover the standards and math in full detail.

Sources

• PoE cable losses (Ethernet Alliance whitepaper)
• PoE Power Calculator: Budget, Watts, Voltage Drop and Distance – Starlight Tools
• Exploring Solutions That Support Extended Distances – Leviton tech brief

FAQ

How far away can a PoE camera be from the switch?

The Ethernet channel limit is 100 meters (328 feet), but the usable distance for a specific camera depends on its wattage, cable gauge, and temperature. High-power PTZ or heated cameras often need a voltage-drop calculation to confirm they’ll work reliably at that full distance.

What is the maximum distance a PoE camera can be connected over standard cable?

Standard Ethernet caps a PoE run at 100 meters (328 feet) plug-to-plug, per IEEE channel specifications. Beyond that, PoE extenders or fiber media converters are required to reach farther.

Is there a hard maximum distance limit for PoE?

Yes, for the data channel: 100 meters (328 feet) on standard copper Ethernet. The practical maximum for power delivery is often shorter and depends on the camera’s wattage, cable AWG, and installation conditions.

Is PoE always 48 volts?

No. PSE voltage typically ranges in the mid-to-high 40 volt range depending on the standard and equipment, with 48 to 56 volts most common in modern 802.3at and 802.3bt gear. That voltage figure is the starting point for any voltage-drop calculation on a long run.

When should I switch to fiber instead of extending copper PoE?

Fiber with media converters is the more reliable choice once a run’s calculated voltage margin comes back thin, or once distance requirements exceed what a single PoE extender hop can reliably cover. It removes the electrical constraint entirely rather than working around it.
