Office Renovation Cabling Planning Checklist: 2026 Guide

TL;DR:

• Proper office cabling depends on early planning, standards compliance, and coordination to avoid costly rework.
• Following a full site survey, defining drop counts, verifying distances, and labeling before testing ensures a smooth installation.

A successful office renovation cabling project comes down to sequencing, standards compliance, and coordination. Get those three right, and your infrastructure goes in clean, tests on the first pass, and supports the next decade of growth. Miss any one of them, and you are paying for rework after drywall is up. Here is the complete checklist your team needs before a single cable gets pulled.

Core checklist at a glance:

• Conduct a full site survey documenting existing MDF/IDF locations, ceiling types, and cable pathways
• Define drop counts by space type: two drops per workstation, four to six per conference room, one dedicated ceiling drop per wireless access point (WAP)
• Verify all horizontal copper runs stay within the 90-meter limit set by ANSI/TIA-568
• Plan cable routes through conduit and trays, keeping NEC fill ratios at or below 40%
• Coordinate pathways with HVAC, fire suppression, and electrical trades before rough-in begins
• Apply TIA-606-C compliant labels at both cable ends, patch panel ports, and outlet faceplates before certification testing
• Certify every run with a Fluke DSX or equivalent calibrated tester
• Deliver as-built drawings, patch panel maps, and certified test reports at project closeout

How to plan your office cabling step by step

Step 1: Start with a cabling needs assessment

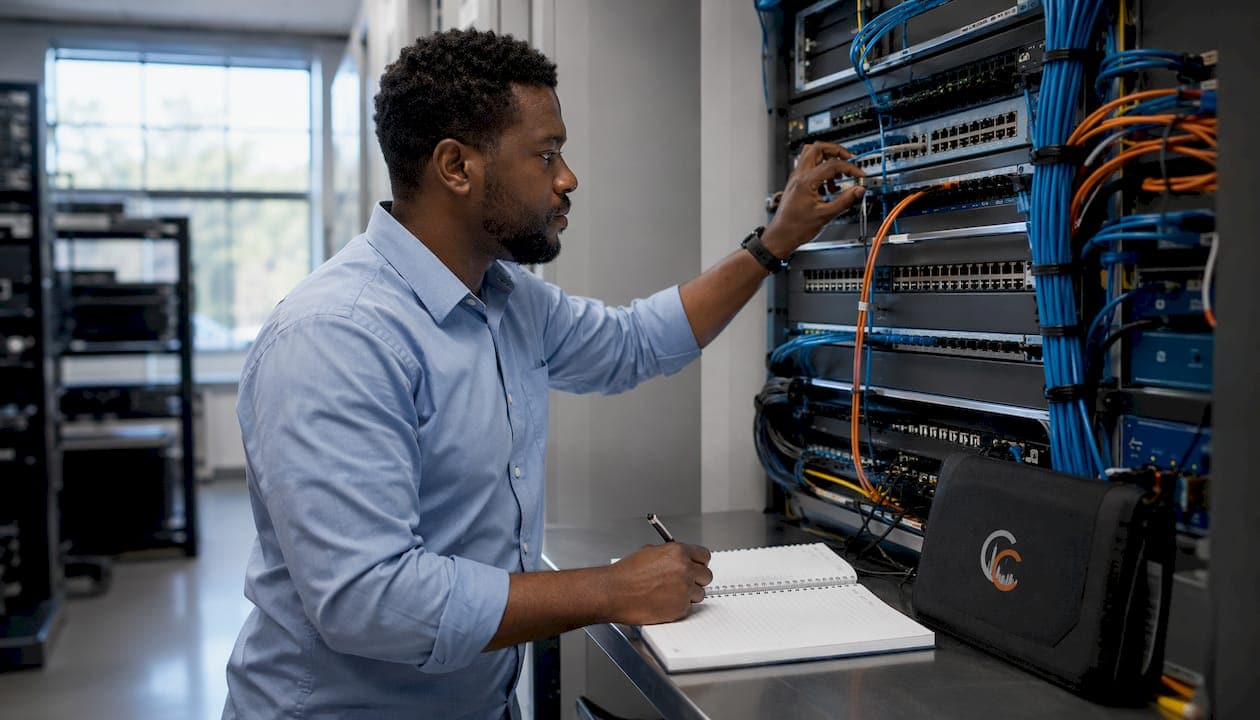

Before any design work begins, walk the space with your general contractor and document everything: existing telecom room locations, ceiling construction, conduit availability, and any cabling that will remain in service. Photograph existing conditions. Disputes about pre-construction damage are common, and photos protect everyone. Measure actual field distances from each work area to the nearest IDF or MDF, because blueprint dimensions rarely match what you find on site.

Step 2: Define drop counts and cable specifications

Workstations get two drops each. Conference rooms need multiple drops plus a ceiling-mounted AP drop and a display connection. Private offices typically take two to four drops. Plan spare capacity above your current headcount to avoid a costly retrofit when the team grows. Specify CAT6A for all new construction; it supports 10 Gbps to 100 meters and handles PoE heat dissipation better than CAT6 in bundled runs.

Step 3: Run a pre-installation wireless heatmap

WAP placement errors are one of the most common sources of post-installation rework. Before finalizing ceiling drop locations, run a wireless heatmap analysis that accounts for ductwork, metal structures, and interior partitions. Coordinate AP positions with the interior designer and GC so mounting locations are confirmed before rough-in. Each AP needs its own dedicated ceiling-mounted cable drop, and WAP placement analysis should happen at the design stage, not after tiles go in.

Step 4: Design pathways and verify distance compliance

Map every conduit run, cable tray segment, and J-hook route on your drawings. NEC pathway fill limits conduit and tray capacity to roughly 40% to preserve heat dissipation and prevent cable damage during pulls. Add at least 15% to measured distances before confirming IDF locations, since cable routes through conduit curves and tray bends, not straight lines. Any run that exceeds the 90-meter horizontal link limit requires an intermediate IDF or a fiber uplink.

Pro Tip: Engage a BICSI Registered Communications Distribution Designer (RCDD) during the design phase. RCDD involvement before framing begins prevents pathway conflicts with HVAC and fire suppression systems that are expensive to resolve once construction is underway.

Step 5: Sequence cabling within the construction schedule

Cable pulls belong in the open-frame phase, after demolition and MEP rough-in but before drywall closure. That window is the highest-leverage period in the entire project: pathways are open, access is unrestricted, and pulling extras costs almost nothing compared to retrofitting after finishes are complete. Coordinate with the GC to time your crew’s arrival at the end of mechanical rough-in, with three to five days of overlap with electrical for separation and pathway coordination.

Step 6: Coordinate with all trades before rough-in

Attend every coordination meeting the GC schedules and bring marked-up plans showing your cable tray and conduit routes. Maintain 12 inches of separation from parallel power runs and 2 inches at perpendicular crossings. Cables cannot share conduit with electrical. Confirm clearance from sprinkler heads and verify that planned routes do not pass through HVAC ducts or block dampers.

Step 7: Pull cable and leave proper service loops

During the open-frame phase, pull all cables at once, including spares. Keep pull tension at or below 25 pounds and respect the minimum bend radius (four times the cable’s outer diameter). Leave 6-foot service loops at the IDF and 18-inch loops at wall outlets. Label the cable jacket at both ends with the planned cable ID as you pull. Catching a mislabeled run during the pull costs minutes; catching it at certification costs hours.

Common mistakes that derail office cabling projects

Most renovation cabling problems trace to coordination failures, not technical errors. The cable category is correct, the terminations are clean, and the testing passes. The problem is being on site at the wrong time, with the wrong information, while every other trade competes for the same ceiling space.

Pitfalls and how to avoid them:

• Late cabling team involvement. Cabling should enter the design conversation at the same time as electrical and mechanical drawings. Arriving after framing is complete means blocked routes and expensive rework.
• Underestimating cable lengths. Straight-line distances on floor plans do not reflect actual routing through conduit bends, tray curves, and wall penetrations. Add routing allowances before confirming IDF placement.
• Ignoring PoE heat impact. Bundling large numbers of PoE cables without accounting for heat dissipation risks both performance degradation and fire code violations. CAT6A handles thermal load better in dense bundles.
• Skipping the wireless heatmap. Metal ductwork and structural elements block signal in ways that are invisible on a floor plan. A pre-installation heatmap prevents coverage gaps that require additional AP drops after the ceiling is closed.
• Labeling after certification. TIA-606-C requires labels at both cable ends, every patch panel port, and every outlet faceplate before certification testing begins. Labels applied under deadline pressure after testing get skipped, and unlabeled infrastructure creates problems for every technician who touches the system later.
• Overfilling conduit and cable trays. Exceeding NEC fill limits causes cables to snag and crimp during pulls and traps heat in PoE bundles.
• No spare capacity. Plan for additional drops beyond current headcount requirements. The cost of pulling extras during open-frame is a fraction of a post-construction retrofit.

For a broader view of how these decisions fit within a longer infrastructure lifecycle, the IT manager’s cabling guide from Cables and Chips covers renovation planning within a multi-year infrastructure context.

What standards govern office cabling compliance?

ANSI/TIA-568: horizontal distance limits

ANSI/TIA-568 caps the permanent horizontal copper link at 90 meters (295 feet), measured by actual cable routing, not straight-line floor plan distance. That 10-meter buffer is reserved for patch cords at each end. Position every IDF so the farthest outlet it serves stays within that limit after routing allowances are applied.

TIA-606-C: labeling and administration

Every patch panel port, outlet faceplate, and cable end must carry a compliant label before certification testing begins. A consistent naming hierarchy, such as TR-01-PP-A-01 for Telecom Room 1, Patch Panel A, Port 1, makes troubleshooting and future moves straightforward. Use thermal-printed labels and replicate the same identifiers in your as-built drawings so physical labels and documentation match exactly.

Certification testing requirements

Certification with a Fluke DSX or equivalent calibrated tester is required before project sign-off. Tests cover:

• Insertion loss (attenuation)
• Return loss
• NEXT and PSNEXT (near-end and power-sum crosstalk)
• ACR-F (attenuation to crosstalk ratio, far-end)
• Propagation delay and delay skew
• For CAT6A: ANEXT (alien crosstalk)

Every failed run must be re-terminated or re-pulled and retested before the record closes. Verbal confirmation of passing tests is not sufficient for liability or warranty purposes.

NEC pathway and grounding requirements

Size conduit and cable trays to stay at or below 40% fill. Establish a Telecommunications Bonding Backbone (TBB) connecting all metallic cable trays, racks, and shields to the building’s main grounding system. Poor bonding creates electrical noise that degrades signal quality and constitutes a code violation.

What 40 years of project experience teaches about cabling renovations

The single most consistent lesson from complex commercial projects is that cabling problems are scheduling problems. A contractor who arrives after drywall is up faces costs that are multiples of what the same work would have cost during open-frame. Cables and Chips builds cabling coordination into the GC’s schedule from the design development phase, not as an afterthought.

Bringing the cabling designer into the project before framing begins is the single highest-return decision an office manager or IT lead can make. Once key ceiling spaces are occupied by ductwork and sprinkler piping, the options narrow fast and the costs climb accordingly. Early involvement is not a luxury — it is the difference between a clean first-pass installation and a change-order conversation nobody wants to have.

PoE device density has increased sharply as IP cameras, lighting controls, and conference room equipment all draw power over data cable. Thermal-aware cable management, including proper bundle sizing and tray fill ratios, is now a standard design requirement, not an optional upgrade. The same applies to wireless infrastructure: a WiFi access point cabling plan developed before rough-in prevents the coverage gaps that force post-construction ceiling work.

Documentation at closeout is where many projects fall short. As-built drawings, patch panel maps, and certified test reports are not administrative formalities. They are the foundation for every future move, add, or change the IT team will make over the next decade.

Pro Tip: For construction project planning that integrates cabling milestones with broader renovation schedules, 2026 construction planning guidance offers practical sequencing frameworks that align trades effectively.

Cables and Chips brings structured cabling expertise to your renovation

Office renovations in New York City move fast, and cabling decisions made late cost real money. Cables and Chips provides end-to-end structured cabling installation for commercial offices throughout NYC, from initial site survey and drop count planning through CAT6A pulls, TIA-606-C labeling, Fluke DSX certification, and full as-built documentation at closeout.

With more than 40 years of experience in low voltage infrastructure, Cables and Chips coordinates directly with general contractors and other trades to keep cabling on schedule during the open-frame window. Every project is documented, tested, and delivered with the certification reports and as-built drawings your IT team needs to manage the network long after the renovation is complete. Schedule a site survey with Cables and Chips at cables.nyc/services to get a clear, phase-based cabling plan before construction starts.

FAQ

What is the maximum horizontal cable run length under ANSI/TIA-568?

The ANSI/TIA-568 standard sets the permanent horizontal copper link limit at 90 meters (295 feet), measured along the actual cable route, not a straight-line floor plan distance.

When should labeling be applied during an office cabling installation?

Labels must be applied after cable pulling but before certification testing, per TIA-606-C. Every cable end, patch panel port, and outlet faceplate requires a compliant label before any test runs begin.

Why does PoE matter for cable bundle planning?

Power over Ethernet generates heat inside cable bundles. Without proper bundle sizing and pathway fill management, that heat can degrade signal performance and create fire code violations, particularly in dense PoE deployments like IP cameras and wireless access points.

How many drops should each workstation receive?

The industry standard is two drops per workstation: one for the primary device and one spare. Conference rooms typically need four to six drops plus a dedicated ceiling drop for the access point.

What documentation should be delivered at project closeout?

A complete closeout package includes as-built drawings showing every drop location, a patch panel port-to-outlet schedule, Fluke DSX certification reports for every copper run, and warranty documentation. If any of these items are missing, the project is not complete.

Key Takeaways

A properly sequenced office renovation cabling project, planned to ANSI/TIA-568 and TIA-606-C standards with early trade coordination, delivers a tested, documented infrastructure that avoids rework and supports long-term growth.
