Network Infrastructure Renovation Best Practices: 2026 Guide
TL;DR:
- Proper network renovation involves careful planning, strict standards compliance, and thorough documentation. Over-provisioning capacity, sequencing cable pulls correctly, and testing to industry standards ensure long-term performance and ease of future upgrades. Early involvement and detailed records prevent costly rework and system failures once the space is occupied.
Network infrastructure renovation best practices are defined as the structured set of planning, installation, testing, and documentation standards that ensure a commercial office network performs reliably after a major upgrade or build-out. The industry term for this discipline is structured cabling project management, and it draws on frameworks from TIA-568, TIA-606, and the National Electrical Code. IT and facilities managers who skip these practices face costly rework, signal degradation, and systems that cannot support future growth. Your network is only as strong as the infrastructure behind it, and the decisions made during renovation determine performance for the next decade.
1. Future-proof capacity before you pull a single cable
Capacity planning is the single most consequential decision in any infrastructure modernization project. Get it wrong and you will be cutting into finished walls within three years.
Over-provision cable drops by at least 20% above your current headcount and hardware count. That buffer absorbs new hires, hot-desking layouts, and hardware additions without a retrofit. Retrofitting a finished office costs far more than running extra drops during open construction.

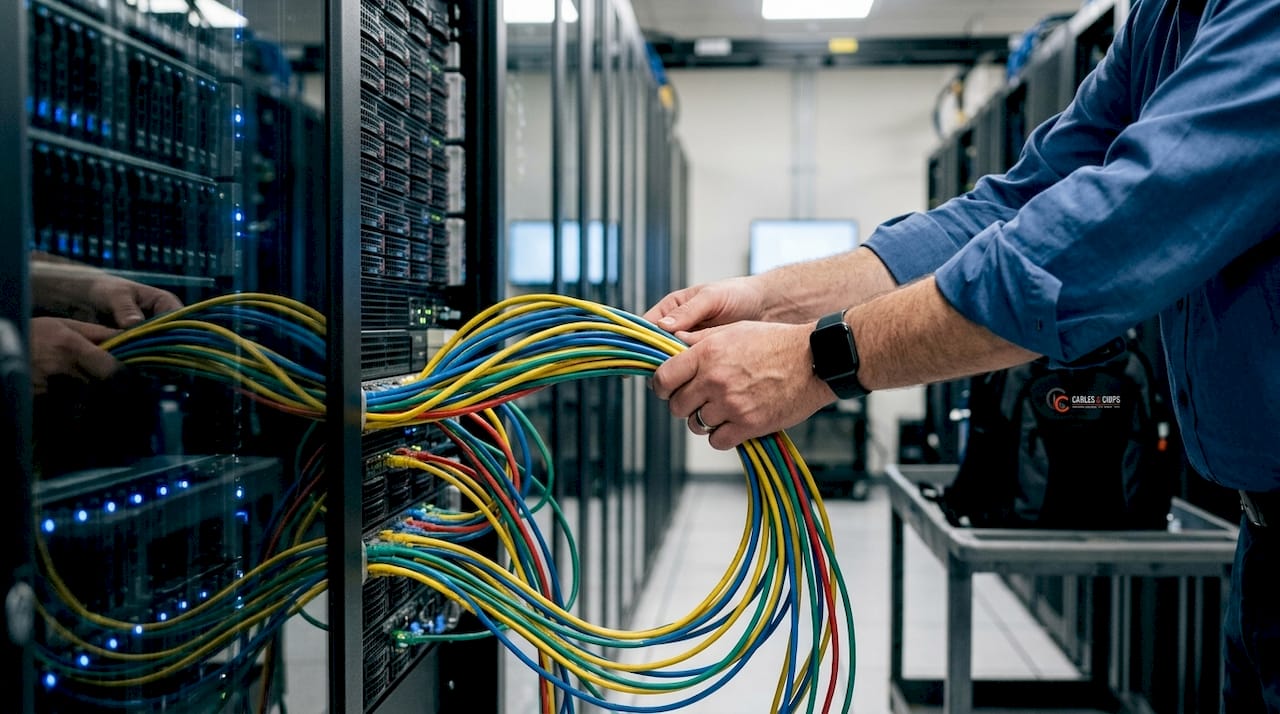

Cable trays and baskets should be filled to no more than 50% of their total cross-sectional area. That limit preserves airflow around cables, prevents heat buildup, and leaves physical room for future additions. A tray packed to 80% today becomes a problem the moment you add a new run.
| Provision level | Tray fill | Outcome |
|---|---|---|
| Under-provisioned (no buffer) | 80%+ | Costly retrofit within 2–3 years |
| Minimally provisioned (10% buffer) | 65–70% | Limited expansion, moderate risk |
| Recommended (20–25% buffer) | 50% or below | Full expansion capacity, no rework |
Plan spare conduits and pathways at the same time. A conduit installed during construction costs a fraction of what it costs to core-drill and sleeve a finished wall later. Think of spare conduits as insurance with a very low premium.
Pro Tip: Label every spare conduit and pathway on your as-built drawings the day it goes in. A conduit no one can locate on a drawing is functionally useless.
2. How to implement structured cabling standards for optimal performance
Standards compliance is not a checkbox exercise. TIA-568 and TIA-606 exist because signal integrity at 10 Gbps leaves almost no margin for sloppy installation.
The TIA-568 standard sets a hard limit: pair untwist must not exceed 0.5 inches at termination points for Category 6A cable. Exceeding that limit introduces crosstalk that causes retransmissions and throughput loss. That is a physical law, not a preference.
For a complete reference on applying these requirements to commercial projects, the TIA standards compliance guide from Cables and Chips covers current specifications in detail.
Key installation requirements under TIA-568 and TIA-606 include:
- Use plenum-rated cable in air-handling spaces. Non-plenum cable in a plenum ceiling violates NEC and creates a fire hazard.
- Maintain bend radius limits. For Cat6A, the minimum bend radius is four times the cable diameter.
- Label every port, cable, and outlet faceplate per TIA-606. Proper labeling cuts troubleshooting time and reduces the risk of human error during moves and changes.
- Separate data cable runs from electrical conduits by at least 12 inches when running parallel per NEC standards. Closer proximity introduces electromagnetic interference that degrades signal quality.
- Document every run with a unique identifier that matches your patch panel and outlet labeling scheme.
Standards compliance also protects your warranty. Most Cat6A system warranties require certified installation and documented test results. Without them, the manufacturer warranty is void.
3. What sequencing and coordination methods minimize disruption
Poor sequencing is the leading cause of rework on commercial renovation projects. Cable must be pulled during the open-frame phase before drywall closure, and terminated only after dust-heavy finishes are complete. That sequence protects connectors from contamination and eliminates the need to open finished walls.
Effective coordination with other building trades is non-negotiable. Network cabling shares ceiling and wall space with electrical, HVAC, fire sprinkler, and security systems. Conflicts between these trades cause delays that cascade across the entire project schedule.
A structured approach to renovation project management reduces those conflicts before they reach the field. Weekly coordination meetings with all trade leads, reviewed against a shared ceiling plan, catch clashes on paper rather than in the ceiling.
The correct renovation sequence for network cabling runs as follows:
- Rough-in conduit and cable pathways during steel stud framing, before any mechanical or electrical rough-in competes for the same space.
- Pull cable through open frames after electrical rough-in is complete and inspected, so you know where conduits sit.
- Protect pulled cable with end caps and secure it away from active demolition zones.
- Complete dust-heavy finishes including drywall, taping, and painting before any terminations begin.
- Terminate, dress, and label all cables at patch panels and outlets after the space is clean and climate-controlled.
- Test and certify every run before ceiling tiles go in, so failed runs are still accessible.
Pro Tip: Never terminate connectors in a dusty environment. Even fine drywall dust inside an RJ45 jack causes intermittent failures that are nearly impossible to diagnose without re-terminating.
The role of a dedicated project coordinator, whether internal or contracted, is critical on projects involving more than two trades. Clear accountability for sequencing decisions prevents the “someone else’s problem” dynamic that causes most field conflicts.
4. How thorough testing and documentation ensure long-term success
Testing is where renovation projects either earn their warranty or expose their shortcuts. Certification testing done correctly gives you a documented baseline that supports troubleshooting, audits, and future upgrades for the life of the infrastructure.
Permanent Link certification is the correct testing method for installed structured cabling. It evaluates the fixed infrastructure from patch panel port to outlet, excluding patch cords. Channel testing includes patch cords, which can mask problems in the permanent link. Permanent Link results give you an accurate, reproducible baseline.
A complete documentation package for a commercial renovation includes:
- Permanent Link test reports for every run, saved in both digital and printed formats.
- Cable schedule mapping each cable ID to its origin panel port, destination outlet, and physical route.
- Floor plan overlays showing outlet locations, cable tray routes, and MDF/IDF room positions.
- Photographic records of rack builds, cable tray fills, and termination points before ceiling closure.
- Validation sheets by floor and zone confirming application performance under real load, not just link status.
The last item matters more than most IT managers realize. Successful renovation validation means confirming application and network behavior under load, not just verifying that the network is online. A link that passes a ping test can still fail under simultaneous video conferencing, VoIP, and file transfer loads.
| Documentation item | Purpose | When to complete |
|---|---|---|
| Permanent Link test report | Certifies physical infrastructure | Before ceiling tile installation |
| Cable schedule | Maps IDs to ports and outlets | During termination phase |
| Floor plan overlay | Visual reference for future work | At project close |
| Zone validation sheet | Confirms real-world performance | Before user occupancy |
For a detailed framework on producing these records, the as-built documentation guide from Cables and Chips covers every component of a complete documentation package.
5. What are the top pitfalls in network renovation and how to avoid them
Field experience across commercial office renovations reveals the same errors appearing on project after project. Knowing them in advance is the most direct path to avoiding them.
- Skipping trade coordination. Pulling cable without a confirmed ceiling plan leads to pathway conflicts with HVAC ducts and electrical conduits. The fix is a pre-construction coordination meeting with all trade leads and a shared reflected ceiling plan.
- Underestimating spare drop needs. Managers who provision exactly to current headcount face a retrofit within two years as teams grow and layouts change. Build in the 20% buffer from the start.
- Improper cable handling during pulls. Exceeding the maximum pulling tension for Cat6A (typically 25 lbs for a four-pair cable) stretches the pairs and permanently degrades performance. Use a tension-limiting pull string or a cable blower for long runs.
- Inadequate fire-stopping. Every penetration through a fire-rated wall or floor assembly requires an approved firestop system. Skipping this step violates NEC and creates liability exposure that no IT manager wants to own.
- Leaving abandoned cables in place. NEC requires the removal of abandoned cables unless they are tagged for future use. Abandoned cables add fuel load, block pathways, and create confusion during future work.
“The most expensive cable is the one you have to pull twice. Skipping coordination, rushing terminations in a dusty space, or leaving abandoned runs in the ceiling all guarantee a return visit. The cost of doing it right the first time is always lower than the cost of fixing it later.”
The network closet organization practices that follow a renovation are equally important. A clean, labeled IDF room is the final proof that the renovation was executed to standard.
Key takeaways
Effective network infrastructure renovation requires capacity planning, standards compliance, correct sequencing, and certified documentation before users occupy the space.
| Point | Details |
|---|---|
| Over-provision from the start | Add at least 20% more cable drops than current headcount to avoid costly retrofits. |
| Follow TIA-568 termination limits | Keep pair untwist at or below 0.5 inches for Cat6A to protect signal integrity. |
| Sequence cable pulls correctly | Pull during open-frame construction and terminate only after dust-heavy finishes are done. |
| Use Permanent Link certification | Test the fixed infrastructure independently of patch cords for an accurate baseline. |
| Document every run and zone | Complete test reports, cable schedules, and validation sheets before user occupancy. |
What I’ve learned from watching renovations go wrong at the last minute
After working on network infrastructure projects across commercial offices in New York City for more than four decades, the pattern I see most often is not technical failure. It is timing failure.
IT managers get involved too late. By the time the network team walks the space, the ceiling is closed, the conduits are full, and the electrical contractor has already claimed every pathway near the server room. At that point, every decision becomes a compromise.
The managers who run clean renovations share one habit: they treat the network infrastructure as a first-trade concern, not a finish-trade concern. They are in the room during the construction kickoff, not the week before move-in. They have a cable schedule before the framing crew starts, not after.
I also think the industry undervalues formal validation. Most teams declare success the moment the switches come online. Real validation means running the applications that users actually depend on, at the load levels those applications generate, across every zone of the floor. A link that passes a speed test at 2:00 AM fails at 10:00 AM when 80 people join a video call simultaneously. That is not a network problem. That is a validation problem.
The other lesson I keep returning to is documentation. The teams that invest in complete as-built records, labeled to TIA-606, with Permanent Link test reports for every run, spend far less time troubleshooting over the next five years. The teams that skip it spend that time on service calls that should never have been necessary.
Plan early. Sequence correctly. Test to standard. Document everything. Those four habits separate renovations that work from renovations that get redone.
— Ken
Cables and Chips supports your network renovation from day one
Cables and Chips brings more than 40 years of structured cabling experience to commercial office renovations across New York City. The team installs CAT6 and CAT6A cabling to TIA-568 standards, manages trade coordination, and delivers complete documentation packages including Permanent Link test reports and as-built drawings.
Every project includes labeled patch panels, certified test results, and zone validation before handoff. For IT and facilities managers planning a renovation, the structured cabling system components guide covers every infrastructure element you need to specify before construction begins. Contact Cables and Chips at 20 Vesey Street, Lower Manhattan, to schedule a site survey.
FAQ
What does over-provisioning cable drops mean?
Over-provisioning means installing more cable drops than your current headcount requires, typically at least 20% more. This buffer accommodates future growth without cutting into finished walls.
What is Permanent Link testing and why does it matter?
Permanent Link testing certifies the fixed cabling infrastructure from patch panel to outlet, excluding patch cords. It provides a more accurate baseline than channel testing because it isolates the installed infrastructure from variables introduced by patch cords.
How far must data cables be separated from electrical conduits?
Data cable runs must maintain at least 12 inches of separation from electrical conduits when running parallel, per NEC standards. Closer proximity introduces electromagnetic interference that degrades signal quality.
When should cable terminations happen during a renovation?
Terminations should happen after all dust-heavy finishes, including drywall, taping, and painting, are complete. Terminating in a dusty environment contaminates connectors and causes intermittent failures.
What labeling standard applies to structured cabling in commercial offices?
TIA-606 is the standard for labeling cables, ports, outlets, and patch panels in commercial structured cabling systems. Proper labeling per TIA-606 reduces troubleshooting time and supports accurate documentation for future maintenance.
