Best Patch Panel Options for Enterprise Networks

For most enterprise networks, 1U 48-port Cat6A punch-down panels are the right baseline. They deliver the density, stability, and 10GBASE-T performance that standardized commercial floors demand. Where your environment involves frequent moves/adds/changes (MACs), mixed copper and fiber ports, or phased buildouts, modular keystone frames or hybrid panels are the stronger call.

Here is the short version of the trade-off:

• Punch-down (110/Krone): Lower per-port cost, maximum mechanical stability, best for static, standardized enterprise floors. Terminations are permanent, so rework is labor-intensive.
• Keystone/modular: Higher module cost, but individual keystones replace without re-terminating the entire panel. Right for high-MAC environments and mixed-media racks.
• Hybrid frames: Accept both punch-down and keystone modules. Useful when a floor has a stable core with a few evolving zones.
• Cat6A baseline: Supports 10GBASE-T at full 100-meter channel length. The price premium over Cat6 is typically 15–25%, but over a 15-year infrastructure lifecycle, it is the more defensible specification.
• TIA-568 compliance: Non-negotiable for enterprise acceptance testing and warranty claims.

Why every enterprise network needs a patch panel

A patch panel sits between your permanent horizontal cabling and your active switching equipment. Its job is separation: the structured cabling runs stay fixed in the wall, floor, or ceiling, while patch cords connect those runs to switch ports. That separation is what makes MACs fast, troubleshooting clean, and switch-port wear manageable.

Without a patch panel, every cable move means disturbing permanent infrastructure. That means re-terminating runs, risking damage to switch ports, and losing the documentation trail that TIA-568 structured cabling standards require for warranty and compliance purposes.

The operational benefits are concrete:

• Faster MACs: Swap a patch cord instead of re-pulling cable.
• Cleaner troubleshooting: Port-to-port mapping lets you isolate faults in minutes rather than hours.
• Reduced active-port wear: Switch ports are touched only when necessary; the panel absorbs daily connection cycles.
• Documentation workflow: TIA-568 requires a labeled, documented horizontal cabling system. Panels are the physical anchor for that record.

Panels are worth skipping only in genuinely small, non-scalable installs — a single-room office with five drops and no growth plan. Any commercial environment with a dedicated IDF or MDF closet should have one.

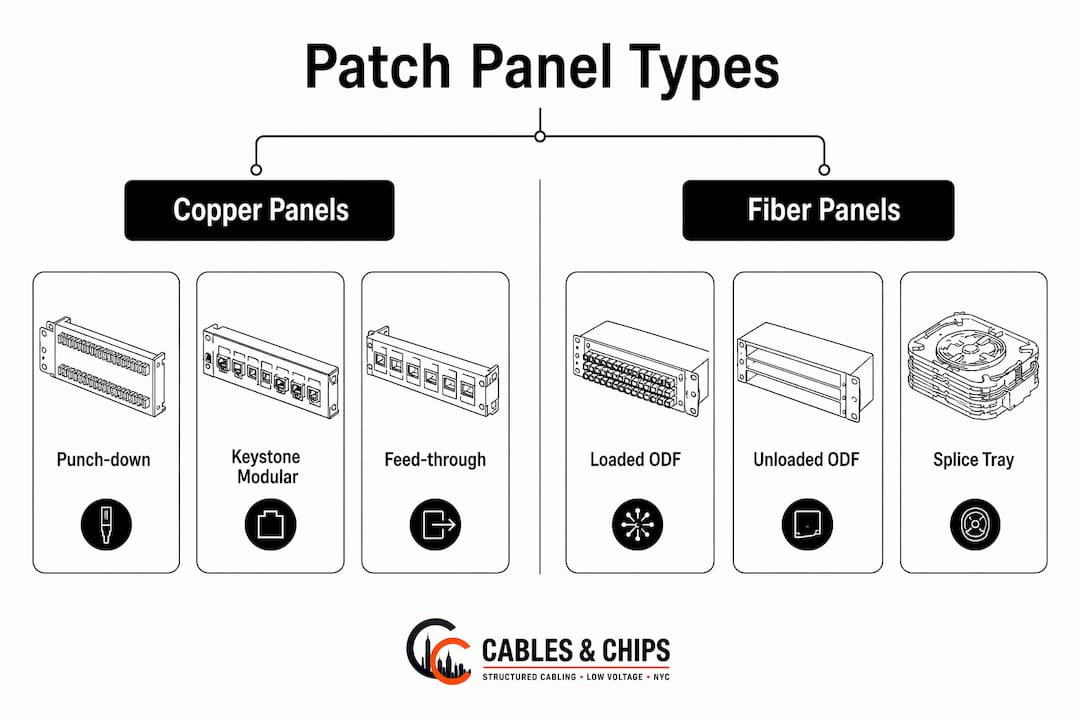

Patch panel types and which environments they fit

Choosing the right panel type is about matching the hardware to your installation model, not chasing the longest feature list. Alignment with your build matters more than specifications on paper.

Punch-down panels (110/Krone)

The workhorse of enterprise structured cabling. Wires terminate directly into IDC (insulation displacement contact) blocks using a punch-down tool, creating a permanent, low-resistance connection. Punch-down panels are the most cost-effective and mechanically stable option for static, standardized floors where the cable layout will not change frequently.

Best for: MDF/IDF core distribution, standardized office floors, high-port-count racks where per-port cost matters.

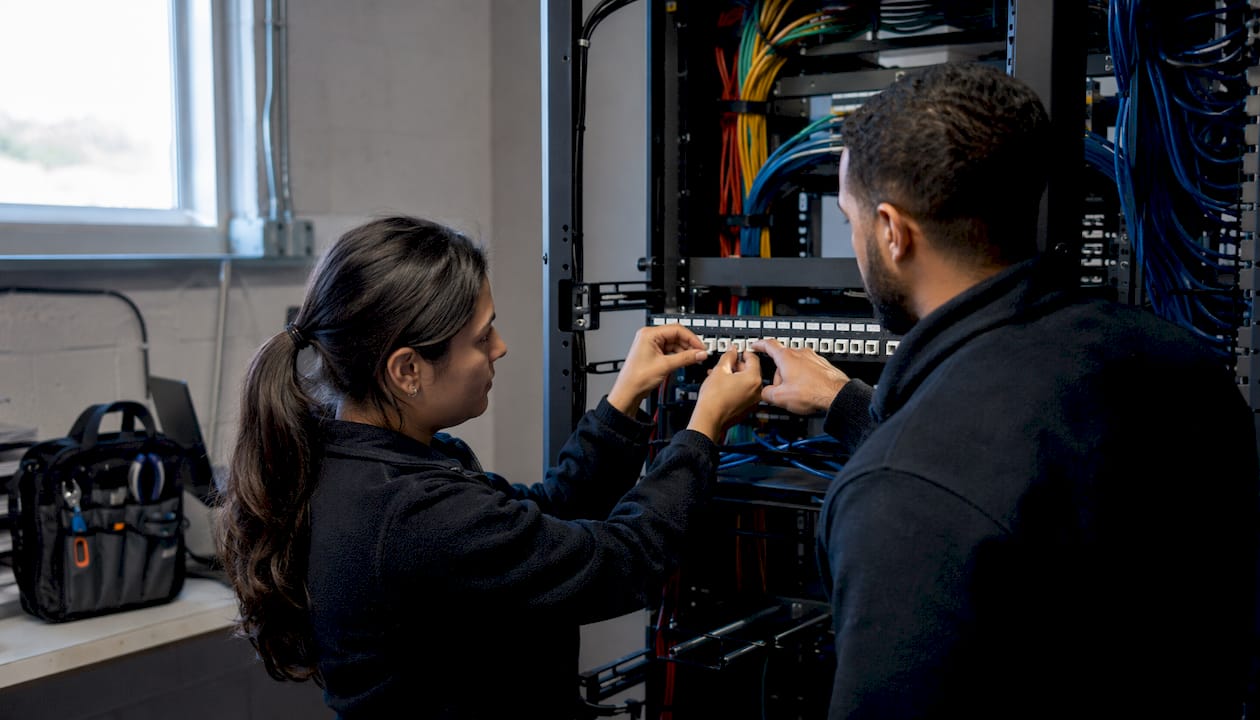

Keystone/modular panels

Unloaded frames accept individual keystone modules — one per port. Each module clips in and out independently, so a single port can be replaced, upgraded, or relocated without touching adjacent terminations. Modular designs also accept mixed media: copper Cat6A keystones alongside fiber LC or SC adaptor keystones in the same frame.

Best for: High-MAC environments, mixed copper/fiber racks, pay-as-you-grow deployments, and any site where the port mix will evolve.

Feed-through / pass-through panels

Pre-terminated on both ends, these panels accept pre-made cable assemblies and snap into place without punch-down tools. Deployment is fast, but they are less suited to long-term structured cabling because field flexibility is limited and re-termination is not practical.

Best for: Temporary deployments, rapid provisioning in data center rows, or environments where pre-terminated assemblies are already specified.

Fiber ODF panels (optical distribution frames)

Fiber panels come loaded (adaptor plates pre-installed) or unloaded (blank face, adaptors added in the field). Loaded panels speed deployment; unloaded panels preserve flexibility for custom LC/SC/MPO mixes. For fiber backbone planning, reserving rack space with unloaded 2U ODFs is standard practice in enterprise MDF rooms.

Best for: Backbone interconnects, server room cross-connects, and any run where copper Cat6A cannot meet distance or bandwidth requirements.

Form factor and density comparison

Pro Tip: In a 42U rack, a 48-port 1U punch-down panel leaves more vertical space for cable managers and horizontal organizers than two 24-port panels. Plan your rack layout before ordering — rear cable congestion is the most common cause of airflow problems in dense IDFs.

Enterprise specs that actually affect performance and longevity

Datasheets can obscure as much as they reveal. These are the physical and electrical specifications that materially affect how a panel performs over a 10–15-year infrastructure lifecycle.

Steel gauge and construction

Enterprise panels should use 1.2mm or thicker galvanized or SPCC cold-rolled steel. Thinner panels flex under the tension of Cat6A shielded cabling, which can stress IDC terminations over time. Rack mounting hardware matters too — look for cage-nut compatibility and full-width mounting ears.

Shielding: FTP/STP vs. UTP

Shielded panels (FTP or STP) are required in high-EMI environments: manufacturing floors, mechanical rooms, facilities near large electrical equipment, and any run that shares conduit with power cabling. For standard commercial office floors with clean electrical environments, UTP panels are adequate. When you specify shielded panels, grounding continuity to the rack chassis must measure 1Ω or less — verify this with a continuity tester at acceptance.

Contact plating and IDC quality

Gold-plated contacts (typically 50 microinches or more for enterprise-grade) resist oxidation through thousands of mating cycles. Phosphor-bronze IDC blocks provide the spring tension needed for reliable, long-term wire retention. Cheaper panels use nickel or tin plating, which degrades faster in humid or variable-temperature environments.

Port density and airflow

48-port 1U panels maximize density but compress rear cable space. In high-density IDFs, consider alternating 24-port panels with 1U horizontal cable managers to maintain airflow and rear access. Rear cable congestion is a leading cause of elevated temperatures in telecom rooms.

Labeling and documentation

• Front and rear port labeling windows (removable bezels preferred)
• Color-coded port groups for zone identification
• Tool-less bezel access for faster label changes during MACs
• Compatibility with your port-mapping software or DCIM platform

Pro Tip: Specify panels with rear-facing label holders as a procurement requirement. Front-only labeling forces technicians to trace cables to identify rear terminations, which slows every MAC and increases error rates.

How to choose the right patch panel for your environment

Selection comes down to six criteria. Work through them in order before issuing an RFP or purchase order.

1. Termination method: Punch-down for static, standardized floors. Keystone/modular for high-MAC or mixed-media environments. Hybrid when you have both.
2. Cat rating: Cat6A is the current enterprise baseline. It supports 10GBASE-T at 100 meters and provides headroom for multi-gig endpoints without re-cabling.
3. Shielding requirement: Audit your cable routes. Any run through EMI-heavy areas needs FTP/STP panels with verified grounding.
4. Port density and rack space: Map your rack layout before specifying. Count U-space for panels, cable managers, switches, and patch cord slack.
5. Modularity and scalability: If your port count will grow, unloaded keystone frames or hybrid panels let you add capacity without replacing the panel.
6. Warranty and vendor support: Require a system warranty from the panel manufacturer, consistent with TIA-568 channel warranty programs.

Procurement checklist

• Rack space map with U-positions allocated for panels, managers, and active gear
• Spare port planning: reserve at least 20% of panel capacity for future growth
• Cable manager capacity: keep horizontal managers under 50% loaded to maintain airflow and future access
• Acceptance testing requirement: specify Level II or Level III channel certification in the contract

Questions to ask vendors and contractors

• What is the panel steel gauge, and is it galvanized or SPCC cold-rolled?
• What IDC punch-down type is used (110 or Krone), and what is the gold plating thickness on contacts?
• Does the panel ship loaded or unloaded, and what is the lead time for loaded units?
• What is the grounding continuity specification for shielded panels?
• What warranty terms apply, and does the manufacturer offer a channel warranty when paired with their patch cords?

Cost and timeline

Professional installation and acceptance testing add upfront cost, but they reduce OPEX by eliminating repeated rework. Prioritizing short-term CAPEX savings over quality panels and certified installation is the most common procurement mistake in enterprise cabling projects.

Pro Tip: Bundle panel supply with installation and certification under a single contract. Split procurement — buying panels separately and hiring a contractor to install them — often creates warranty gaps and accountability disputes when test results fail.

US enterprise patch panel brands worth researching

The US market has several well-established panel manufacturers. Each has a different emphasis, and knowing those differences helps you ask better questions during procurement.

• Panduit: Known for high-density copper and fiber solutions, strong system warranty programs, and broad TIA-568 compliance documentation. Widely specified in enterprise MDF/IDF rooms.
• Leviton: Strong in modular keystone systems and mid-market enterprise deployments. Good availability through US electrical distributors.
• Belden/PatchMax: Emphasis on high-performance shielded systems and data center applications. Belden’s channel warranty program is frequently cited in enterprise RFPs.
• Commscope/SYSTIMAX: Enterprise and carrier-grade solutions with extensive compliance documentation. Common in large commercial buildings and campus networks.
• Siemon: Known for heavy-duty construction and shielded panel systems. Frequently specified for high-EMI or secure facility environments.
• Ortronics (Legrand): Modular systems with strong US distribution and a broad keystone module catalog.

What to verify on every datasheet:

• Material finish and steel gauge (confirm 1.2mm minimum)
• Warranty length and whether it covers the full channel or the panel only
• Compliance statements: TIA-568, ISO/IEC 11801, and any relevant IEC contact standards
• Whether the panel ships loaded or unloaded, and what adaptor options are available

Avoiding vendor lock-in: Prefer panels that use industry-standard keystone formats (compatible with third-party modules) and document their warranty SLAs in writing. Proprietary keystone formats can trap you into a single vendor’s module pricing for the life of the installation.

Pro Tip: Request a sample panel before committing to a large order. Check the steel flex under hand pressure, test the IDC block feel with a punch-down tool, and verify that the label bezels actually release tool-lessly. Datasheet claims and physical reality sometimes diverge.

Installation, testing, and the mistakes that cost the most

Good hardware fails in a poorly executed installation. These are the field practices that separate a clean, documented handover from a cabling project that generates trouble tickets for years.

Pre-install checklist

1. Confirm cable lengths and verify all horizontal runs are within the 90-meter permanent link limit (leaving 10 meters for patch cords per TIA-568).
2. Map rack layout: assign U-positions for panels, cable managers, switches, and future expansion before any hardware is mounted.
3. Verify conduit and pathway fill ratios — do not exceed 40% fill on shared conduit runs.
4. Reserve capacity: plan for at least 20% spare ports and keep cable managers under 50% loaded.
5. Confirm grounding path from rack chassis to building ground before installing shielded panels.

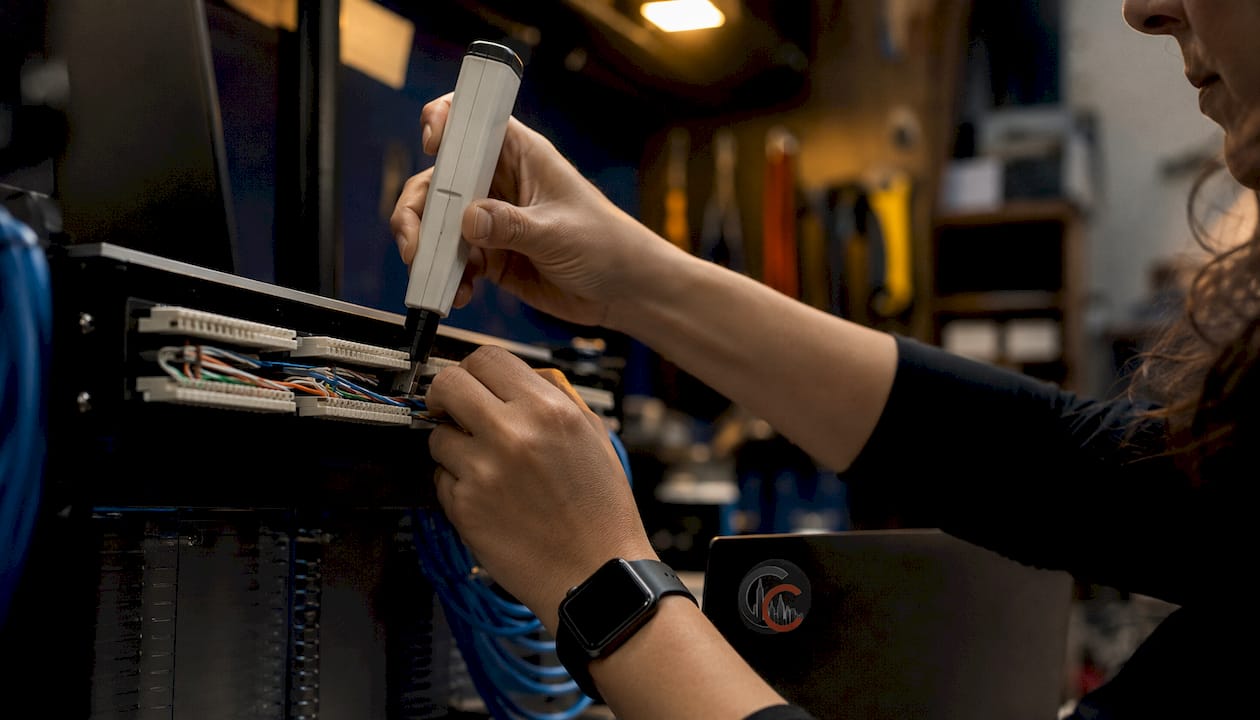

Termination best practices

Consistent T568B wiring is the US commercial standard. Mixing T568A and T568B across the same build creates faults that are time-consuming to diagnose and expensive to correct. Maintain cable bend radius (no tighter than 4x the cable diameter for Cat6A), keep untwist length at IDC blocks to 13mm or less, and secure shield drain wires to chassis ground on every shielded termination.

Acceptance testing template

Require certificate PDFs from the installer as a contract deliverable. A project without test certificates has no verifiable acceptance baseline.

Pro Tip: Specify the tester model and firmware version in your RFP. Level III testers (such as Fluke Networks DSX CableAnalyzer series) provide the measurement uncertainty margin required for Cat6A channel certification. Level II testers are adequate for Cat6 but may not provide sufficient headroom for Cat6A pass/fail decisions.

Common installation mistakes

• Poor labeling at handover: Labels applied in marker on cable jackets fade within 18 months. Require printed, heat-shrink, or panel-window labels.
• Documentation rot: Physical labels and the digital port map fall out of sync quickly without a process. Quarterly documentation audits and a live port-mapping database prevent the expensive troubleshooting that follows. See the enterprise cabling documentation guide for a practical audit framework.
• Overstuffed cable managers: A cable manager loaded above 50% capacity restricts airflow and makes future MACs destructive to adjacent cables.
• Mixing Cat6 and Cat6A without documentation: Mixed-category channels default to the lower-performing standard. Document every mixed run explicitly.

Maintenance schedule

• Quarterly: audit port labels against the digital port map; correct discrepancies immediately.
• After every major MAC: re-test affected channels and update documentation before closing the work order.
• Annually: verify shielded panel grounding continuity and inspect cable manager fill levels.

Key Takeaways

For enterprise networks, Cat6A punch-down panels with 1.2mm steel construction, verified grounding, and Level III acceptance testing deliver the best combination of performance, longevity, and documented compliance over a 15-year infrastructure lifecycle.

The spec details that actually protect your investment

Most enterprise cabling projects go wrong at the specification stage, not the installation stage. The panel brand matters less than whether the spec sheet was read carefully and whether the contractor was held to it.

The single most overlooked item in panel procurement is steel gauge. A 0.8mm panel looks identical to a 1.2mm panel in a rack. The difference shows up two years later when Cat6A shielded cabling tension has stressed the IDC blocks enough to cause intermittent continuity failures. By then, the original contractor is long gone and the rework cost falls on the IT budget.

The second overlooked item is documentation. Physical labels and digital port maps drift apart within months of a project handover unless a formal audit process is in place. Documentation rot is a leading cause of expensive troubleshooting in enterprise networks — not hardware failure, not switch misconfiguration, but the simple inability to confirm which physical port connects to which endpoint. Quarterly audits and a live port-mapping database are not optional maintenance tasks; they are the difference between a network that is serviceable and one that is a liability.

The third item is acceptance testing. Many IT managers accept a project based on visual inspection and a few ping tests. That is not acceptance testing. A proper handover requires Level II or Level III channel certification results, in PDF, for every run. Without those certificates, you have no warranty baseline and no leverage if performance degrades.

The advice to match panel type to installation model rather than feature lists is correct. A modular keystone frame in a static environment adds cost without benefit. A punch-down panel in a high-MAC environment adds labor cost every time a port changes. The right choice is the one that fits how the network will actually be used, not the one with the most impressive datasheet.

Cables and Chips handles panel selection, installation, and certification

Cables and Chips is a structured cabling contractor based in Lower Manhattan, serving commercial offices, secure facilities, and enterprise environments throughout New York City. With more than 40 years of field experience, the team handles the full scope of a panel deployment: site survey, rack layout design, panel supply, termination, documentation, and Level III acceptance testing — all under a single contract.

For IT managers who want one point of accountability from spec to sign-off, that matters. No split procurement, no warranty gaps, no test certificates that never arrive. Cables and Chips delivers structured cabling system components with the documentation and certification that enterprise environments require.

Request an on-site survey or project estimate at cables.nyc/services.

Useful sources for procurement and acceptance testing

The standards and references below are the authoritative baseline for enterprise panel specifications and acceptance testing in the US market.

Datasheets and test reports to request from vendors:

• Steel gauge and material finish (confirm 1.2mm minimum, galvanized or SPCC)
• Contact plating specification (gold thickness in microinches)
• IDC block type (110 or Krone) and rated termination cycles
• Shield continuity test results for shielded panel models
• Warranty statement: panel-only vs. full channel warranty, and duration
• TIA-568 and ISO/IEC 11801 compliance declarations

Suggested reading and application notes:

• TIA-568 standard overview — TIA Online (tiaonline.org)
• NIST physical security guidance for network infrastructure — nist.gov
• NICCS NICE Framework for network infrastructure workforce standards — niccs.cisa.gov
• Vendor application notes for Cat6A in high-EMI environments (request directly from Panduit, Siemon, or Commscope)
• Patch panel design for office networks — Cables and Chips (practical rack layout and density planning)

FAQ

What is the best patch panel type for an enterprise network?

For most enterprise environments, a 1U 48-port Cat6A punch-down panel is the standard choice for static floors. Use modular keystone frames where MACs are frequent or the port mix will include both copper and fiber.

How does Cat6A differ from Cat6 in a patch panel context?

Cat6A panels support 10GBASE-T at the full 100-meter channel length specified by TIA-568. Cat6 panels support 10GBASE-T at shorter distances, making Cat6A the correct baseline for any enterprise deployment where future multi-gig speeds are expected.

When do shielded (FTP/STP) patch panels become necessary?

Shielded panels are required in high-EMI environments — manufacturing floors, mechanical rooms, or any cable route sharing conduit with power wiring. When specified, shield continuity to the rack chassis must measure 1Ω or less at acceptance testing.

What should an enterprise patch panel acceptance test include?

A complete acceptance test covers channel insertion loss, NEXT, ACR-N, wire map continuity, and (for shielded panels) shield-to-chassis continuity. Results must be produced by a Level II or Level III certified tester and delivered as PDF certificates at project handover.

Does Cables and Chips supply and install patch panels in New York City?

Yes. Cables and Chips provides panel design, supply, installation, documentation, and Level III acceptance testing for commercial and enterprise environments throughout New York City.
